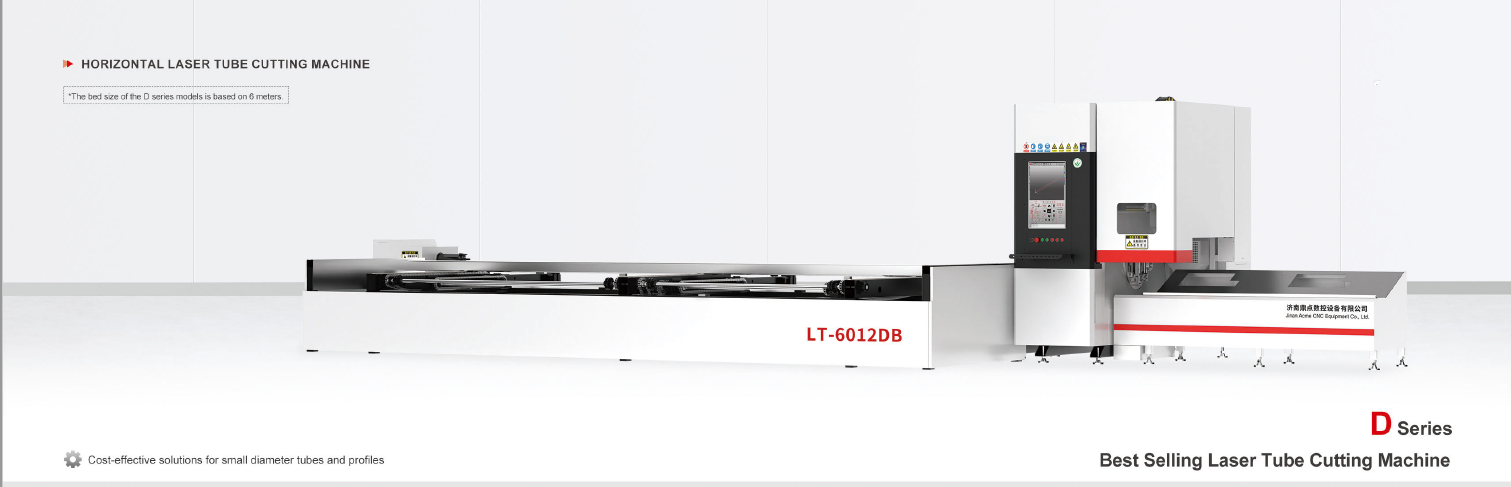

TEKMA D-series Top Selling Laser Tube Cutting Machine
Cutting ability
D-Series top selling tube laser cutting machine, can cut any metal Tubes, with the length of 6m, the diameter 8-250mm, and the weight 300kg or less

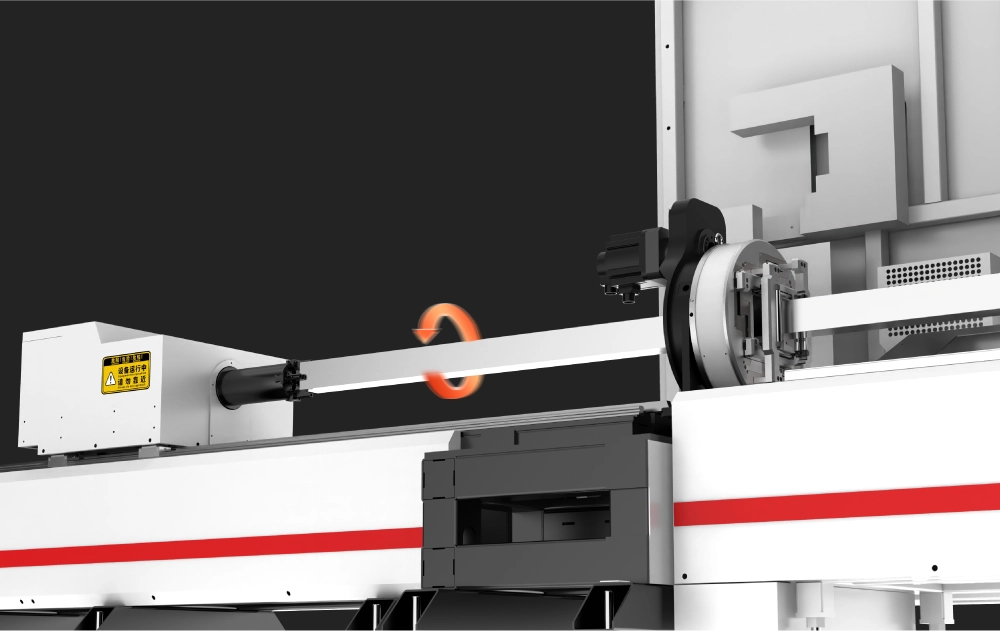

Small and high-speed chuck
200r/min, fast cutting speed; small tail material technology，High material utilization rate
Gantry structure
minimize beam vibration to ensure cutting accuracy, no deformation after long-term use
High cost-effective combination
compact design, reduced floor space; easy installation and simple operation; high-quality processing, extremely low operating costs and super high adaptability
| Model | 6012D | 6018OB | 6023D |
| Laser power | 1-6kw | 1-6kw | 1-6kw |
| Tube diameter | 8-120mm | 10-180mm | 10-230mm |
| Processable pipe length | < Dari 6300mm | < Dari 6300mm | < Dari 6300mm |
| Cutting end material | > Dari 65mm | > Dari 65mm | > Dari 65mm |
| Chuck speed | 200r/min | 120r/min | 100r/min |
| Maximum acceleration | 1.5G | 1.2G | 1.2G |
| Dimension | 9310*2380*2600mm | 9310*2380*2600mm | 9310*2380*2600mm |
| Tube Types | Square pipe, round pipe, rectangular pipe, I-beam, H-beam, angle steel, channel steel and special pipe fittings, etc. | ||
Autonomous Technology
High dynamic performance
120 model, chuck moving speed 110m/min, rotation speed 200r/min, acceleration 1.5G, creating higher production efficiency for you

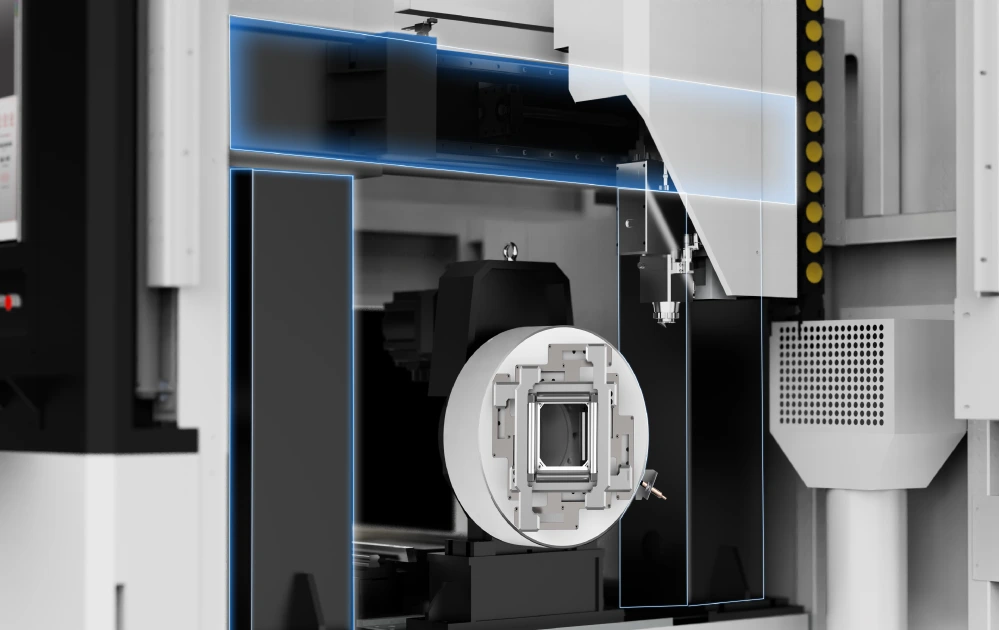

Gantry structure
Minimizes beam vibration to ensure cutting accuracy, no deformation for long-term use
Light type loader
Light loader is optional, compact design, high cost performance; one person can watch over multiple devices, saving labors and improving efficiency.
