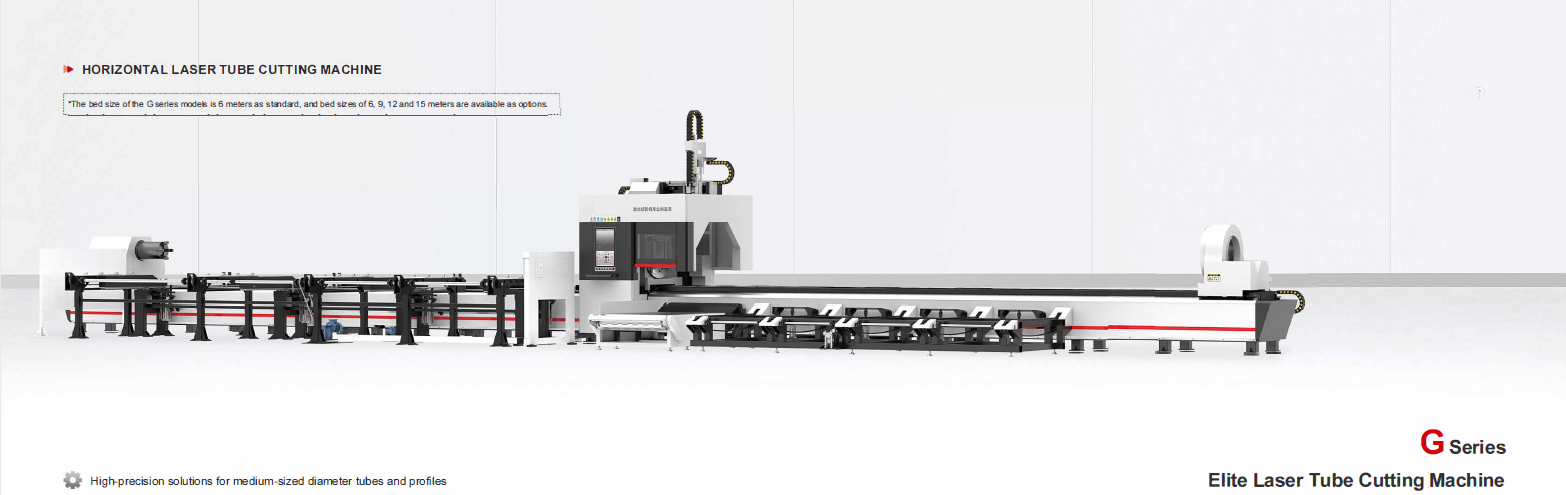

TEKMA G series Elite Laser Tube Cutting Machine
Cutting Ability
G series zero tailing laser Tube cutting, can cut any metal Tubes, with the length of 6-12m, the diameter 8-350mm, and the weight of 1.5 tons or less
Full-stroke chucks
No need to change the chuck claws to improve productivity; the clamping force is twice as strong as ordinary ones
Zero tailing cutting
saves production costs and meets more complex cutting needs
3D bevel cutting
Support V-bevel Y-bevel X-bevel K-bevel and gradient cutting. Cutting section is good, no burr, no need secondary process, upgrading the qualified rate of finished products
High dynamic performance
High-performance bus servo motor, the maximum feeding speed up to 100m/min, ensuring the running speed of machine
| Model | 6018GH | 6026GA | 9028GY | 12036GKA |
| Laser power | 1-30kw | 1-30kw | 1-30kw | 1-30kw |
| Tube diameter | 10-180mm | 15-250mm | 15-280mm | 30-350mm |
| Processable pipe length | < Dari 6300mm | < Dari 6300mm | < Dari 9300mm | < Dari 12300mm |
| Cutting end material | > Dari 0mm | > Dari 0mm | > Dari 0mm | > Dari 0mm |
| Maximum acceleration | 1.2G | 1.2G | 1.0G | 0.7G |
| Dimension | 16100* 4650*3000mm | 16100* 4100*3000mm | 51697*7050*5108mm | 28200* 4800*2800mm |

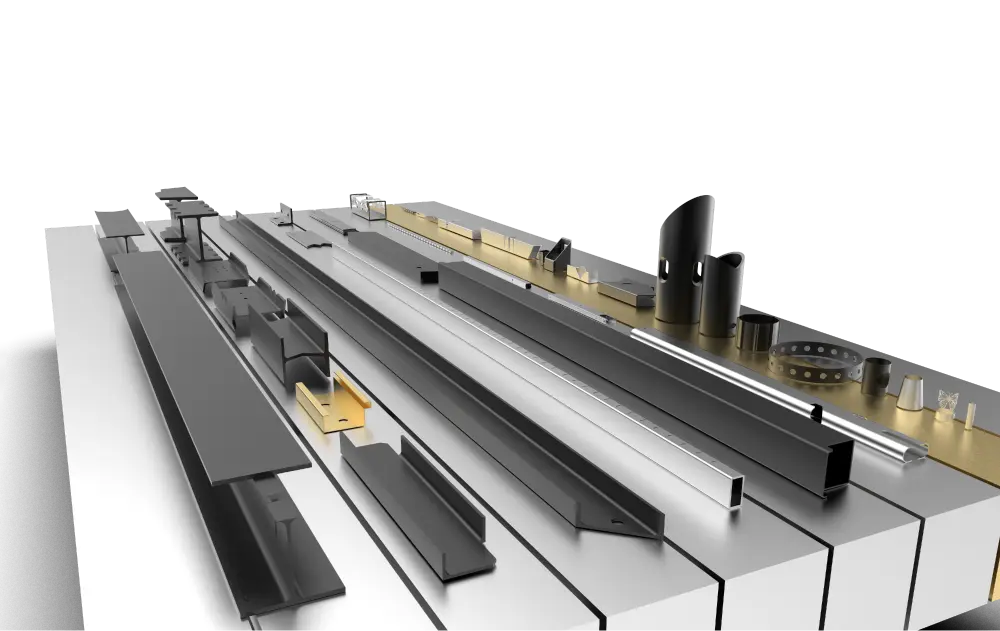

| Tube Types | Square pipe, round pipe, rectangular pipe, I-beam, H-beam, angle steel, channel steel and special pipe fittings, etc. | |||

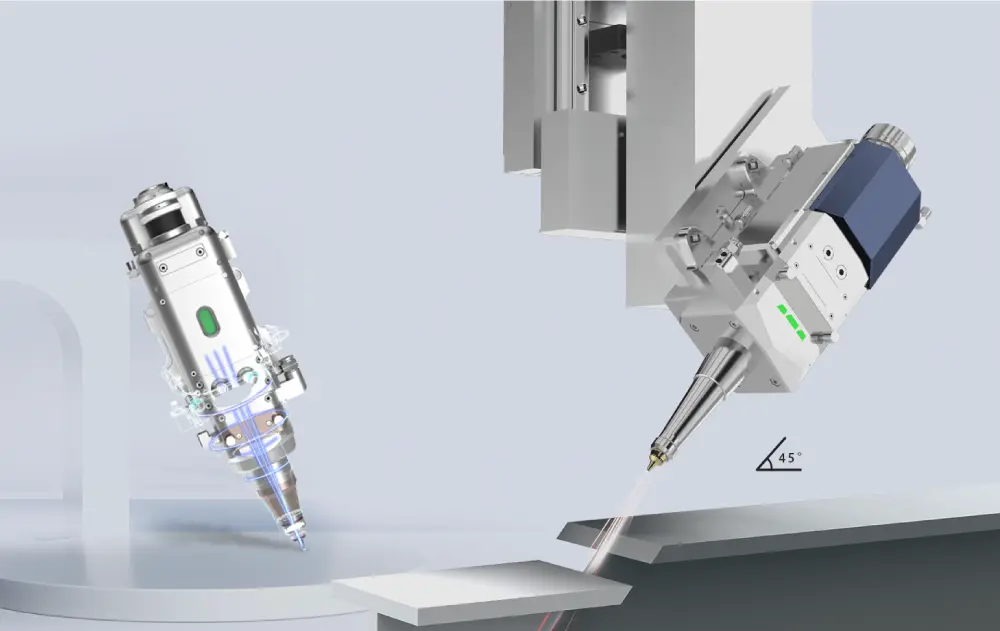

±45° Bevel Cutting
Shortlisted for the local government innovation and improvement project Ordinary laser heads can achieve ±45° bevel cutting as well, and support various bevel forms cutting, such as V-shaped, Y-shaped, X-shaped, K-shaped, meeting diverse processing needs.
Static cutting
Its standard technology for partial models of G series: add a small Y-axis with a stroke of 300mm, realizing the cutting head moving but the Tube not, reducing the fluctuation of large Tubes and upgrading processing accuracy and speed.
Intelligent cutting process
Supports a variety of intelligent processes such as flying cutting, frog jumping, guide line, intersecting holes, automatic nesting, weld compensation, simulated cutting, micro-joining, automatic focusing, etc.. ACME is dedicated to creating a convenient operating experience for you, making processing easy and comfortable.
