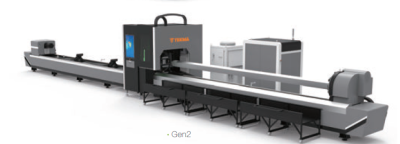

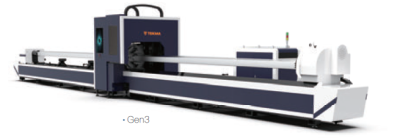

TEKMA TLF-T3 Three Chuck Fiber Laser Tube Cutting Machine
SKU : 10100900
Description
Product Description
- The design includes a three-chuck system, with a movable middle chuck for "zero waste" processing and extended pipe capabilities
- The gantry-style welding column offers improved stability compared to single columns, with X-axis motion and a dustproof cloth
- With an adjustable follow-up support, the pipe can be supported on any surface, providing greater automation than traditional nylon sizing wheel devices
Technical Parameters
| Mode | TLF-6024T3 |
| Min. Diameter | φ15mm 15mm |
| Max. Diameter | φ230mm 230mm |
| Laser Power Supply | 1500W, 2000W, 3000W, 6000W |
| Axis Stroke | X=700mm, Y1=7000mm, Y2=6000mm, Z=300mm |
| Positioning Accuracy | ±0.03mm |
| Voltage | 380V 3PH 50/60HZ |
| Chuck Speed | 75r/min |
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain |
