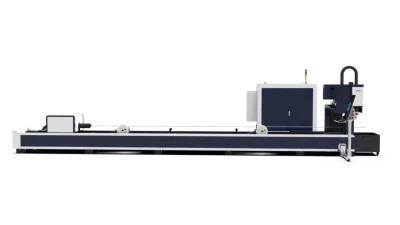

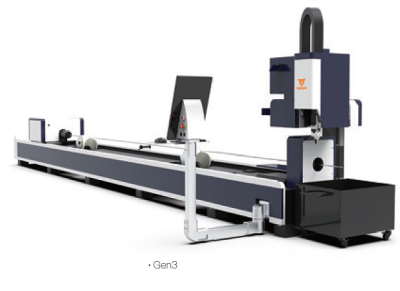

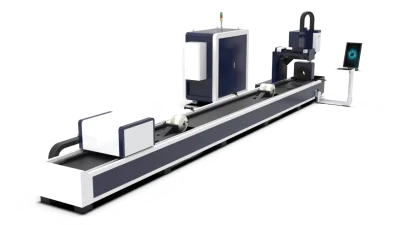

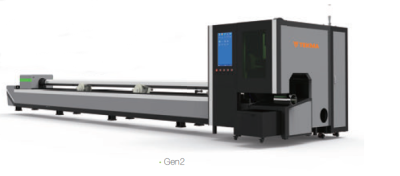

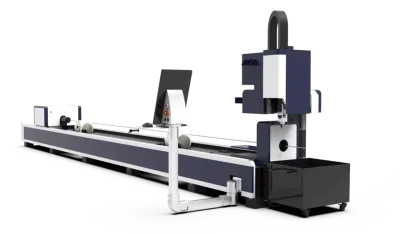

TEKMA TLF-MT Mini Fiber Laser Tube Cutting Machine
- The fully automatic pneumatic chuck features a precise internal transmission structure that utili
- Specifically designed for cutting small pipes, it offers Flexible rotation capabilities to meet the demands of fast and efficient cutting
- With a smaller overall footprint, this equipment is more cost-effective and easy to install
Technical Parameters
| Mode | TLF-6011MT | TLF-6016MT |
| Min Diameter | φ10mm 10mm | φ20mm 20mm |
| Max Diameter | φ110mm 110mm | φ160mm 160mm |
| Laser Power Supply | 1500W, 2000W | |
| Maximum Acceleration | 1G | |
| Positioning Accuracy | ±0.03mm | |
| Voltage | 380V 3PH 50/60HZ | |
| Chuck Speed | 80r/min | |
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator, Safety Light Curtain | |
CNC Laser Pipe Cutting: Precision Cutting with Smart Recognition
- Versatile Shape Identification: Automatically recognizes standard and special-shaped pipes, including round, oval, square, and more, eliminating manual configuration.
- Non-Inductive Detection: Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.
- Exceptional Precision: Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency and quality in every cut.
Automatic Support
Tekma Small Pipe Cutting Machine features an advanced automatic support system, ensuring stability and precision during the cutting process. This component plays a vital role in maintaining the alignment of the pipes, ensuring that the cuts are clean, accurate, and consistent regardless of the length or diameter of the material.
Precision and Consistency
With high-quality construction and advanced technology, the machine ensures the highest level of precision and consistency with every cut.

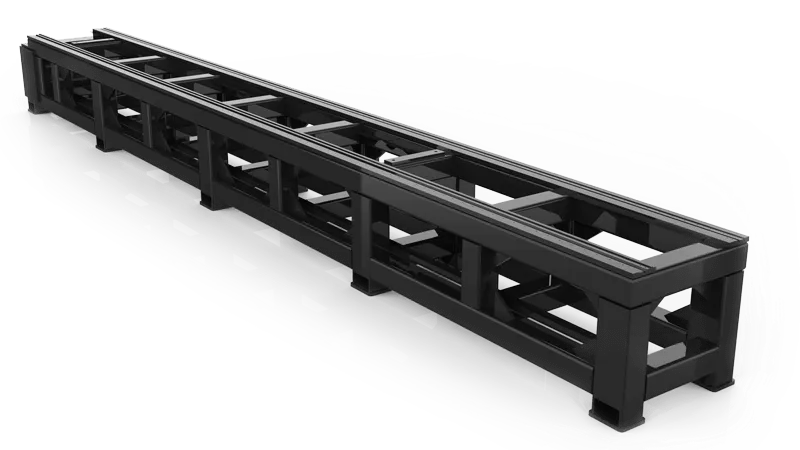

Tube Cutting Machine Body
Our machine body is crafted from national standard square tubes and undergoes a rigorous 600 high-temperature heat treatment for enhanced durability. After precision finishing with a 12-meter gantry milling, it's cooled inside an oven for 24 hours. This meticulous process ensures the machine remains deformation-free for up to 30 years, guaranteeing its enduring accuracy.
