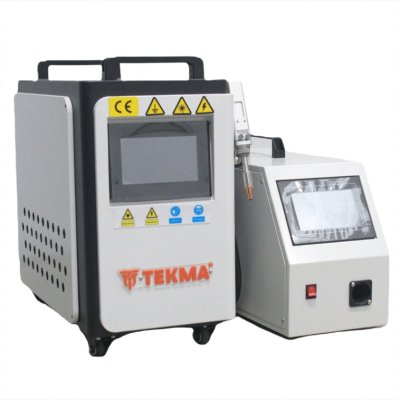

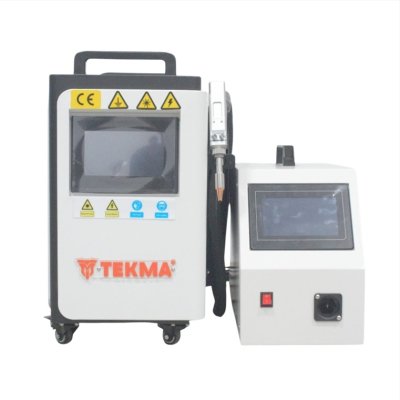

TEKMA TFW Fiber Laser Welding Machine Air Cooled

SKU : 10101800
Handheld laser welding machine, Air Cooled Type

Description
  1. No need for additional water-cooling equipment, easy installation, simple operation, easy to improve welding efficiency by 3-8 times
  2. Small size, easy to move and carry
  3. Forced air cooling mode, energy saving, low operating cost
  4. The welding is firm, the tensile strength of the weld is as high as 80% of the base metal, the full power and the penetration depth is large, far exceeding the peers
  5. Welding 0 basic can be operated, the gun head is light, long-term welding is not tired, and female workers can also operate easily
  6. The welding speed is fast, the efficiency is high, and there is no need to polish the moulding at one time
  7. The weld is beautiful and not blackened, suitable for all kinds of materials, devices, and complex welding, flexible and convenient, and accurate positioning

Tips: If you want to check the attribute differences of specific products, please click Contact Us to consult.

Product Model
TFW-1200W AC
Laser Power1200W
Fiber Cable Length7 Meter
Working Method
Continuous/Modulated Pulse
Laser Wavelength1070/1080 nm
Welding Speed0-120 mm/s
Case MaterialThe All-Aluminium housing weight only 6.5 kg
Cooling MethodAir Cooler with Exhaust Fan
Working Environment5~40°C, Humidity <70%
Applicable Plate Thickness0.6~3.0 mm
Gap Requirements0~1 mm
Max. Power Consumption<6.0 KW
Working Voltage220V/1Phase/50Hz
Overall Dimensions530x270x600
Overall Machine Weight40 kg
