TEKMA TFW Fiber Laser Welding Machine Gen.2

SKU : 10101700

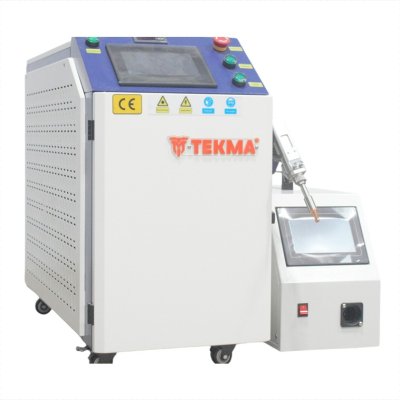

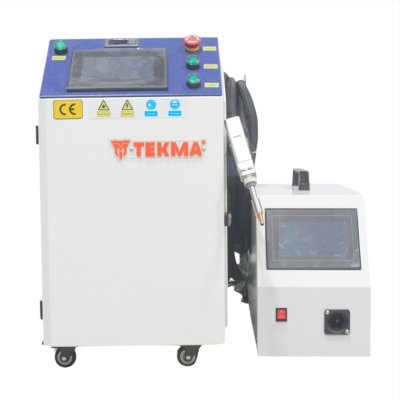

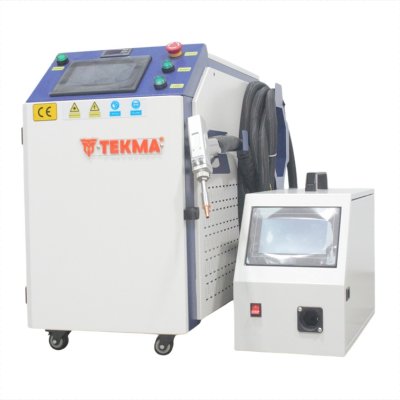

Handheld laser welding machine Gen. 2, Water Chiller Integrated Type

Brands :TEKMA

Description

The welding speed is fast, 2-10 times faster than traditional welding, and at least 2 welders can be saved a year
The operation is simple, that is, it can be used immediately after learning, and beautiful products can be welded without a master
The weld is smooth and beautiful, reducing the follow-up grinding process, saving time and cost
Hand welding, flexible and convenient, longer welding distance
The heat-affected area is small during welding, which will not lead to work deformation, blackening, and traces on the back, and the welding depth is large, the welding is firm, and the melting is sufficient. There is no depression on the convex part of the dissolved material in the dissolved pool and the matrix

Tips: If you want to check the attribute differences of specific products, please click Contact Us to consult.

Product Model	TFW-1500W G2	TFW-3000W G2
Laser Power	1500W	3000W
Fiber Cable Length	7 meters
Working Method	Continuous/Modulated Pulse
Laser Wavelength	1070/1080 nm
Welding Speed	0-120 mm/s
Cooling Method	Integrated Type Water Chiller, Dual Temperature, Dual Control, Constant Temperature, Water Tank
Working Environment	5~40°C, Humidity <70%, No Condensation
Applicable Plate Thickness	0.6~4.0 mm	0.6~8.0 mm
Gap Requirements	0~2 mm
Max. Power Consumption	<6.0 KW	<8.5 KW
Working Voltage	220V/1Phase/50Hz	380V/3Phase/50Hz
Overall Dimensions	1100x450x790 mm	1270x520x1070 mm
Overall Machine Weight	120 kg	120 kg
