1. The welding speed is fast, 2-10 times faster than traditional welding, and at least 2 welders can be saved a year.
2. The operation is simple, that is, it can be used immediately after learning, and beautiful products can be welded without a master.
3. The weld is smooth and beautiful, reducing the follow-up grinding process, saving time and cost.
4. Hand welding, flexible and convenient, longer welding distance.
5. The heat-affected area is small during welding, which will not lead to work deformation, blackening, and traces on the back, and the welding depth is large, the welding is firm, and the melting is sufficient. There is no depression on the convex part of the dissolved material in the dissolved pool and the matrix.
Tips: If you want to check the attribute differences of specific products, please click Contact Us to consult.

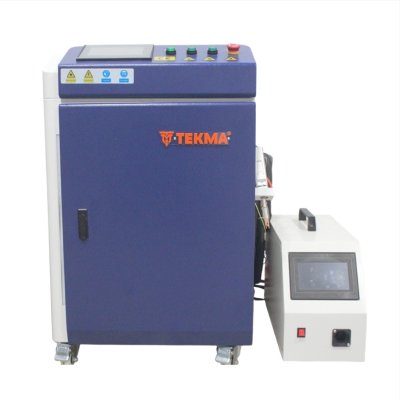

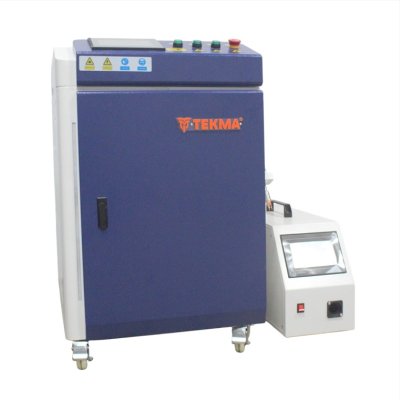

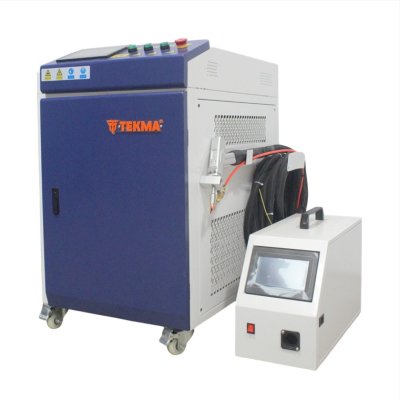

Product Model | TFW-1500W G1 | TFW-3000W G1 |
Laser Power | 1500W | 3000W |
Fiber Cable Length | 7 meters | |
Working Method | Continuous/Modulated Pulse | |
Laser Wavelength | 1070/1080 nm | |
Welding Speed | 0-120 mm/s | |
Cooling Method | Split Type Water Chiller, Dual Temperature, Dual Control, Constant Temperature, Water Tank | |
Working Environment | 5~40°C, Humidity <70%, No Condensation | |
Applicable Plate Thickness | 0.6~4.0 mm | 0.6~8.0 mm |
Gap Requirements | 0~2 mm | |
Max. Power Consumption | <6.0 KW | <8.5 KW |
Working Voltage | 220V/1Phase/50Hz | 380V/3Phase/50Hz |
Overall Dimensions | 920x650x1080 mm | 1230x650x1080 mm |
Overall Machine Weight | 130 kg | 180 kg |
