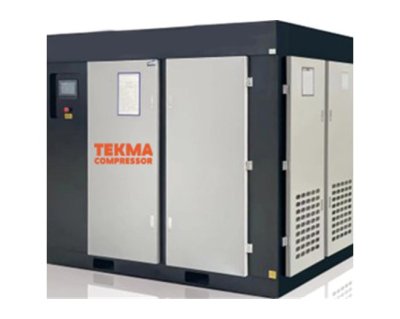

TEKMA DOUBLE STAGE AIR COMPRESSOR
SKU : 10700600
37KW 16BAR
Description
Periodic Maintenance
Features:
- High efficiency: Double screw air compressors can provide high efficiency compression capacity with low energy consumption. Its screw design and optimized operating principle enables an efficient compression process that reduces energy consumption and increases the efficiency of the system
- Low noise: Compared with other types of compressors, double screw air compressors produce lower noise during operation. This is because the fit between the screw and the screw is very tight, reducing the friction sound and mechanical vibration
- Wide load range: double screw air compressors have a wide load range, which can meet the stable compressed air supply under different needs. It can automatically adjust its working state according to changes in air demand to maintain the efficiency and stability of the compressor
- High reliability: double screw air compressor has simple structure, few parts, stable and reliable operation. It can operate for a long time under harsh environmental conditions, and it is relatively simple for the normal operation and maintenance of the compressor
- Easy installation and maintenance: twin-screw air compressors can be easily installed and integrated according to existing equipment and pipeline networks. At the same time, its small number of parts makes maintenance and repair easier and more economical
- Space saving: twin-screw air compressors are usually smaller and occupy a smaller area than other compressors. This makes them suitable for industrial environments with limited space and can better meet the needs of users All in all, twin-screw air compressors have the advantages of high efficiency, low noise, wide load range, high reliability and easy installation and maintenance, and are suitable for the air compression needs of various industrial fields
| Model | MK37 | MK45 | MK55 | MK75 | MK90 | MK110 | MK132 | |||||||
| Power(KW) | 37 | 45 | 55 | 75 | 90 | 110 | 132 | |||||||
| Working Pressure(Bar) | 16 | 20 | 16 | 20 | 16 | 20 | 16 | 20 | 16 | 20 | 16 | 20 | 16 | 20 |
| Flow | 3.85 | 3.7 | 5.3 | 5.0 | 6.2 | 5.8 | 8.3 | 7.8 | 10.5 | 9.7 | 14 | 13 | 16 | 14.5 |
| Type | Double Stage | |||||||||||||
| Cooling | Air Cooling | |||||||||||||
| Weight(KG) | 430 | 520 | 650 | 900 | 1100 | 1300 | 1500 | |||||||
| Size(mm) | 1450X1000X1230 | 1800X1280X1650 | 2600X1400X1700 | |||||||||||
Information:

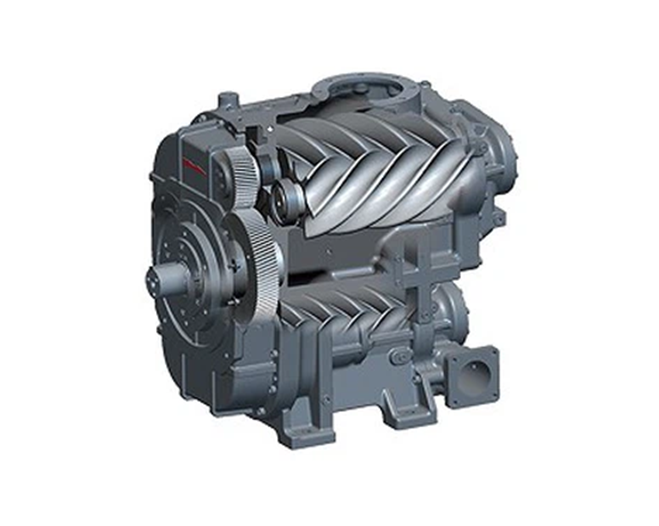

Two-stage compression
The specially customized two-stage compression host has high stability and low noise. Compared with single-stage compression, two-stage compression reduces the load on the bearings, increases the life of the bearings, and extends the life of the host. Operation approaches the most power-efficient isothermal compression , in principle, two-stage compression saves 5~8% more energy than single-stage compression.

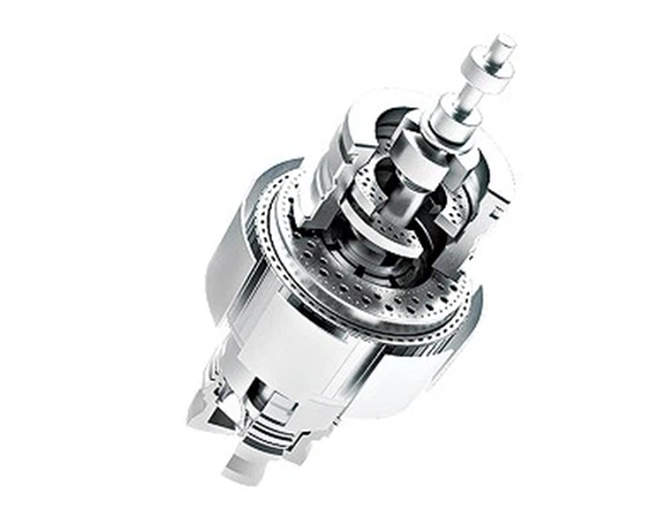

High Efficiency Motor
It adopts a low-speed variable frequency permanent magnet motor with high torque and easy speed adjustment. It has the characteristics of soft starting and fast braking. It is small in size and has a simple and easy maintenance structure. It can achieve high speed and high voltage operation, has high durability, easy speed adjustment, and is energy saving.
It adopts a low-speed variable frequency permanent magnet motor with high torque and easy speed adjustment. It has the characteristics of soft starting and fast braking. It is small in size and has a simple and easy maintenance structure. It can achieve high speed and high voltage operation, has high durability, easy speed adjustment, and is energy saving.
