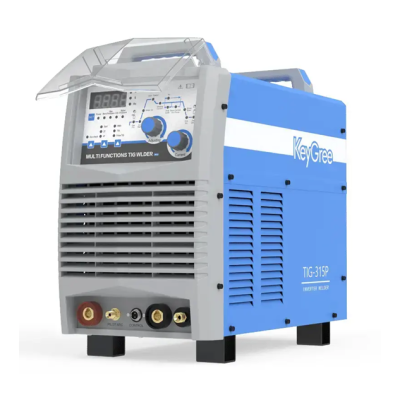

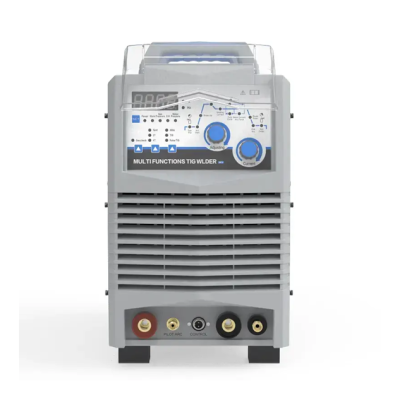

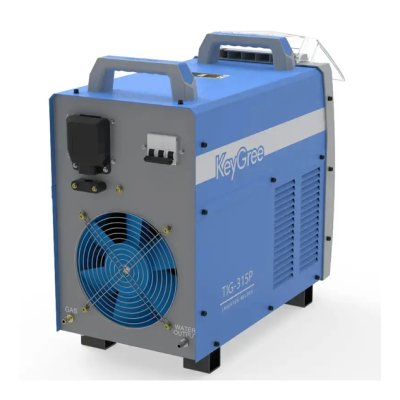

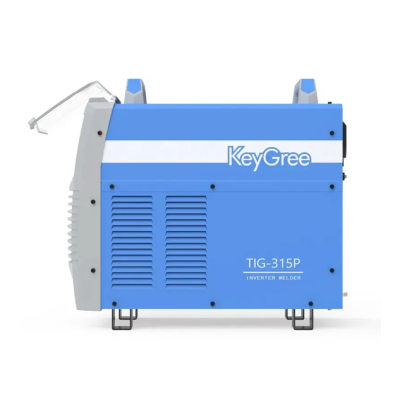

TIG Welding Machine (DC PULSE)
SKU : 11002000
DC PULSE TIG welder / GTAW welder / GTAW welding machine
Description
Features:
- Save / Load
- TIG ACDC / MMA
- 2T / 4T / S.4T / Spot Selection.
- Pre gas / Hot ARC / ARC Start / Slope up / Welding current / Pulse frequency / Spot welding time / AC balance / AC amplitude / AC frequency / Slope down / End ARC / Gas delay / Adjustable
Specification:
| Model | TIG-315P | TIG-400P | TIG-500P | TIG-630P | |
| Rated Input Voltage(VAC) | 3P 380V | ||||
| Input Frequency(Hz) | 50/60 | ||||
| Max Input Current(A) | 15 | 22 | 31.7 | 46.8 | |
| Rated Input Power(KVA) | 9.9 | 13.9 | 20 | 27.8 | |
| No-Load Voltage(V) | 68 | 70 | 78 | 82 | |
| Real Output Current(A) | TIG | 315 | 400 | 500 | 630 |
| MMA | 315 | 400 | 500 | 630 | |
| Adjustable Current Range(A) | TIG | 10-315 | 10-400 | 10-500 | 10-630 |
| MMA | 10-315 | 10-400 | 10-500 | 10-630 | |
| Duty Cycle(%) | 60 | ||||
| Gas pre-flow time(S) | 0.01-5 | ||||
| Gas post-flow time(S) | 0.01-60 | ||||
| Arc initiation current(A) | 20-40 | ||||
| Ramp up time(S) | 0.01-10 | ||||
| Pulse Frequency(%) | 1-90 | ||||
| Basic value time(S) | 0.01-10 | ||||
| Ramp down time(S) | 0.01-10 | ||||
| Crater filler current(A) | 20-100 | ||||
| Machine Weight(KG) | 27.4 | 28.5 | 38.5 | 39 | |
| Machine Dimension(MM) | 515X275X470 | 560X305X530 | 650X335X575 | 650X335X575 | |
