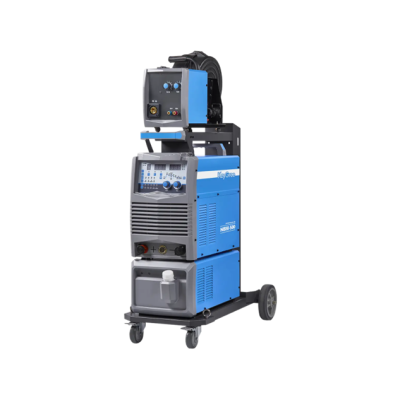

MIG Welding Machine (DOUBLE PULSE)
SKU : 11001500
Double pulse MIG welder / FCAW welder / MIG welding machine
Description
Features:
- IGBT module
- IGBT inverter technology
- Water cooler, trolley optional
- SINGLE PULSE / DOUBLE PULSE / MMA / TIG LIFT
- Closed type 4 rolls wire feeder is available. (D300MM)
Specification:
| MODEL | MIG-250DP | MIG-280DP | MIG-350DP | MIG-500DP |
| Rated Input Voltage(V) | 3P 380V | 3P 380V | 3P 380V | 3P 380V |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Input Current(A) | 47 | 16.5 | 24 | 42 |
| Rated Input Capacity(KVA) | 10.4 | 11 | 16 | 28 |
| No-Load Voltage(V) | 65 | 68 | 68 | 68 |
| Duty Cycle(%) | 60 | 80 | 100 | 100 |
| Adjustment Current Range(A) | 20-250 | 40-280 | 40-350 | 40-500 |
| Adjustment Voltage Range(V) | 9-32 | 14-35 | 14-40 | 14-50 |
| Wire Diameter(MM) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 1.0-1.6 |
| Spool Size(KG) | 15 | 15 | 15 | 15 |
| Efficiency(%) | 0.8 | 0.8 | 0.8 | 0.8 |
| Insulation Class | F | F | F | F |
| Real Current(A) | 250A | 280 | 350 | 500 |
| Machine Dimensions(MM) | 500X250X407 | 820X495X760 | 1150X635X1575 | 1150X635X1575 |
| Weight(KG) | 15 | 45 | 103 | 103 |
Information:
MIG series is our inverter welder manufactured with advanced inverter technology, which is a more mature and stable product series.
- Superior IGBT inverter technology,frequency upto 28KHz,smaller volume,lighter weight,higher efficiency,and more energy-saving
- MIG industrial machine with softswitch design for higher reliability
- Closed-loop feedback control,stable output voltageand strong resistance to grid voltage fluctuation(±10%);Unique welding dynamic characteristic control circuit, stable welding arc, few spatter, beautiful molding and high welding efficiency;Whole series digital design,capable of adjusting the parameters in the program according to different workpieces and welding technology;Having the ability to eliminate the molten dropletsat the end of the wire after welding, supplemented by high no-load and slow wire feeding functions toimprove the success rate of one-time arc striking;All separate types with self-locking/non-self-locking(crater on/off)functions,suitable for different welding needs
- Having both gas shielded(arc)welding and manual welding functions
- Used for carbon dioxide gas (CO2) or mixed gas shielded (MA/MIG) welding, the shielding gas composition of CO2,MAG,MIG welding methods correspondingin order:100% CO2,80% Ar +20% CO2,and 98% Ar +2%CO2
- Suitable for welding common low carborsteel,stainless steel and their alloys
- Suitable for solid wires and tubular flux-cored wires
