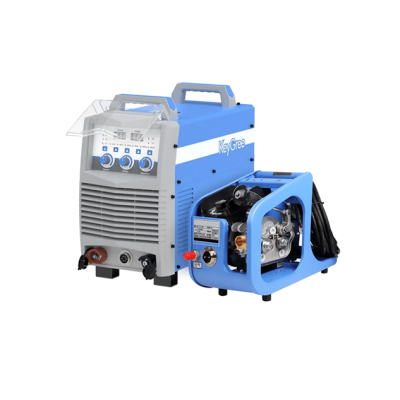

MIG Welding Machine(1/3P 220/380V)
SKU : 11001300
1-3P 220/380V MIG welder / FCAW welder / MIG welding machine
Description
Features:
- MIG / MMA 2 IN 1
- Extension wire can be to 50MM
- Full Voltage: 1P 220V; 1PH 380V; 3PH 220V; 3PH 380V
- Capable of loading up to 20KG spool wire feeder separated
Specification:
| MODEL | MIG-270K | MIG-315K | MIG-350K | ||||||
| Rated Input Voltage(V) | 1P 220V | 3P 220V | 3P 380V | 1P 220V | 3P 220V | 3P 380V | 1P 220V | 3P 220V | 3P 380V |
| Inverting Frequency(KHz) | 25 | 25 | 25 | ||||||
| Input Current(A) | 27 | 14 | 16 | 32 | 16 | 20 | 39 | 20 | 23 |
| Rated Input Capacity(KVA) | 11.6 | 14.6 | 17.2 | ||||||
| No-Load Voltage(V) | 54 | 56 | 62 | ||||||
| Duty Cycle(%) | 60 | 60 | 60 | ||||||
| Adjustment Current Range(A) | 40-170 | 40-250 | 40-190 | 40-315 | 40-220 | 40-350 | |||
| Real Current(A) | 170 | 250 | 190 | 315 | 220 | 350 | |||
| Adjustment Voltage Range(V) | 23 | 27.5 | 23.5 | 29.8 | 25 | 31.5 | |||
| Wire Feeder | Separated Type | ||||||||
| Spool Size(KG) | 15 | ||||||||
| Wire Diameter(MM) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | ||||||
| Efficiency(%) | 80 | 80 | 80 | ||||||
| Insulation Class | F | F | F | ||||||
| Machine Dimensions(MM) | 470X230X460 | 470X230X460 | 470X230X460 | ||||||
| Weight(KG) | 18 | 20 | 22 | ||||||
Information:
MIG series is our inverter welder manufactured with advanced inverter technology, which is a more mature and stable product series.
- Superior IGBT inverter technology,frequency upto 28KHz,smaller volume,lighter weight,higher efficiency,and more energy-saving
- MIG industrial machine with softswitch design for higher reliability
- Closed-loop feedback control,stable output voltageand strong resistance to grid voltage fluctuation(±10%);Unique welding dynamic characteristic control circuit, stable welding arc, few spatter, beautiful molding and high welding efficiency;Whole series digital design,capable of adjusting the parameters in the program according to different workpieces and welding technology;Having the ability to eliminate the molten dropletsat the end of the wire after welding, supplemented by high no-load and slow wire feeding functions toimprove the success rate of one-time arc striking;All separate types with self-locking/non-self-locking(crater on/off)functions,suitable for different welding needs
- Having both gas shielded(arc)welding and manual welding functions
- Used for carbon dioxide gas (CO2) or mixed gas shielded (MA/MIG) welding, the shielding gas composition of CO2,MAG,MIG welding methods correspondingin order:100% CO2,80% Ar +20% CO2,and 98% Ar +2%CO2
- Suitable for welding common low carborsteel,stainless steel and their alloys
- Suitable for solid wires and tubular flux-cored wires
