KRRASS QC12K Hydraulic Swing Beam Shears

Hydraulic Swing Beam Shearing Machine

Swing Beam Shears adopts high technology standards, design, and a user-friendly interface. We have reduced the cutting angle to achieve straight precision and minimum twist tolerance. QC12K Hydraulic Shearing Machine provides perfection with high-standard safety and efficient solutions that strengthen your skills and add value to your company.

• Top performances allow to accurately and cost-efficiently cut pieces in high volumes
• We has entirely designed the proportional oil hydraulic circuit. It is optimized for every swing beam shear size, with high-quality and reliable parts
• QC12K Swing Beam Shearing Machine is available in a wide range of models and powers. Length and shearing thickness can be customized to the highest levels in the category


Standard Equipment

• Controller: ESTUN E21S
• Electrics: Schneider Electric - France

• Main Motor: Siemens Motor - Germany

• Frequency Converter: Shihlin-Taiwan

• Foot Switch: KACON - South Korea

• Hydraulic System: Bosch Rexroth - Germany

• Oil Pump: First- USA

• Sealing Ring: PARKER - America

• High Efficiency Motor - Class IE3

• Tube Connector: EMB - Germany

• Backgauge: SACH-Taiwan

Introduction to Configuration

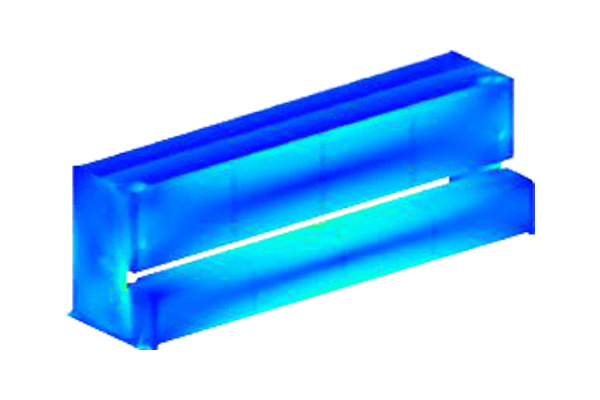

Stress Analysis & Finite Element Analysis

The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loadings, transient modelling and combination of the above, FEA makes sense.

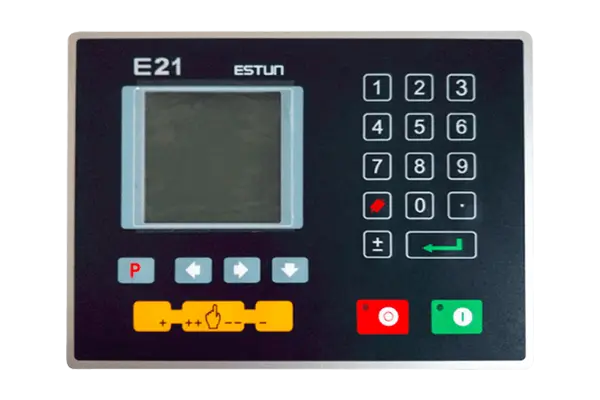

ESTUN E21S Control

• High-definition hydraulic display

• Control common motors and frequency converters

• X-axis intelligent positioning

• Multi-step programming, 40 programs, each program 25 steps

• Built-in time relay function

• One-button function switching

• Unilateral positioning function

• A key backup and restore of parameters

• Chinese and English

• Metric system

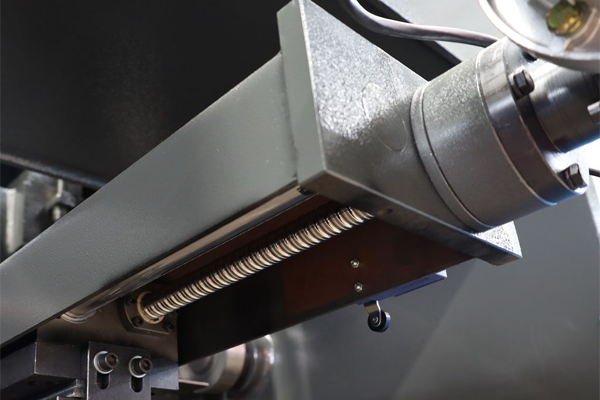

Sheet Metal Guillotines Back Gauge System

One of the most important factor for bending capacity is the design of back gauge and stability. Quality cutting is possible with perfect product, stabilty and precision back gauge.

The high speed ballscrew back gauge system movement is also supported with linear guides, which helps the back gauge achieve long life, greater sensitivity and strengthens against any collisions.

Swing Beam Shearing Machine

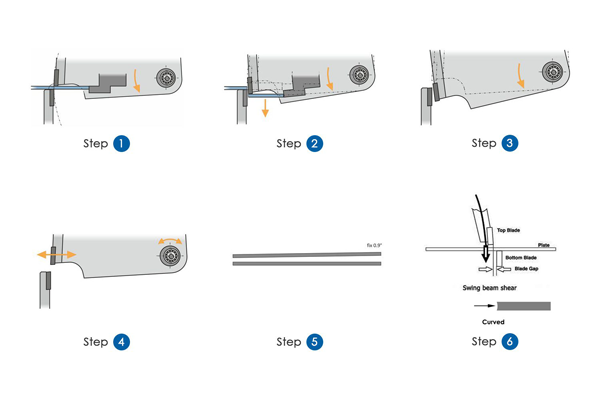

Principle: The swing beam shearing machine uses the up and down movement of the swing beam to achieve cutting of the workpiece. During cutting, the workpiece is clamped on the worktable, while the swing beam above moves downward to drive the blade for cutting.

Characteristics:

• Typically used in smaller workshops and situations requiring frequent tool changes.

• Simple structure and easy operation.

• Suitable for quick cutting of thin sheet materials.



More Details of Hydraulic Shearing Machine

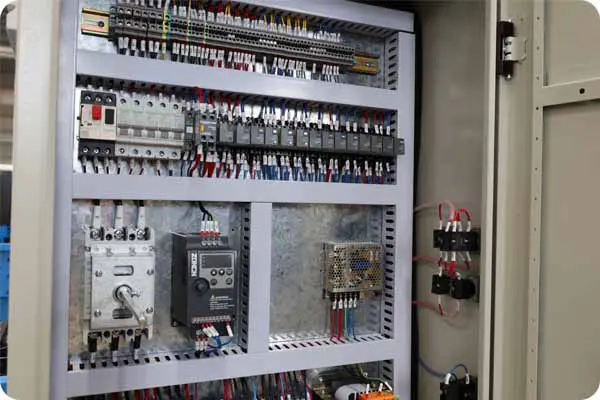

Schneider Electrics France

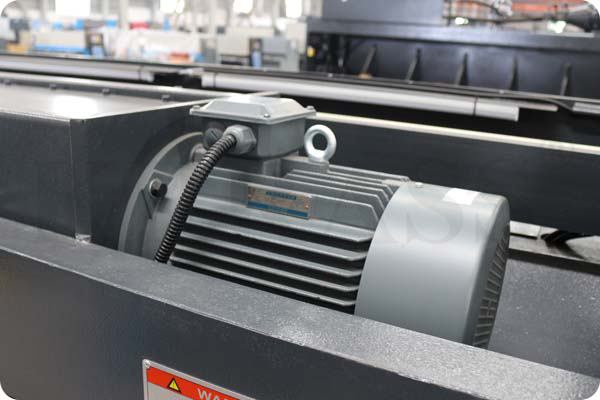

Siemens Motor

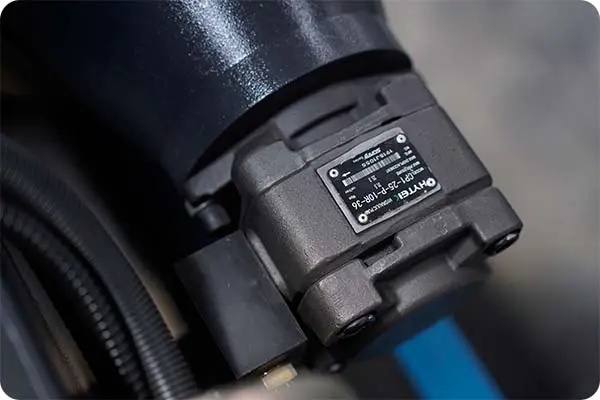

Sunny oil pump USA

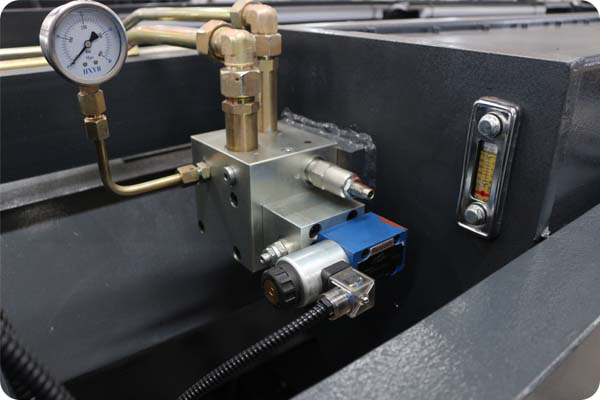

Bosch Rexroth Valve Germany

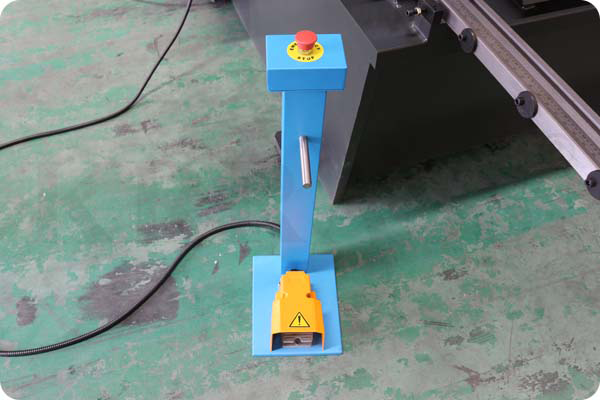

KRRASS Pedal switch

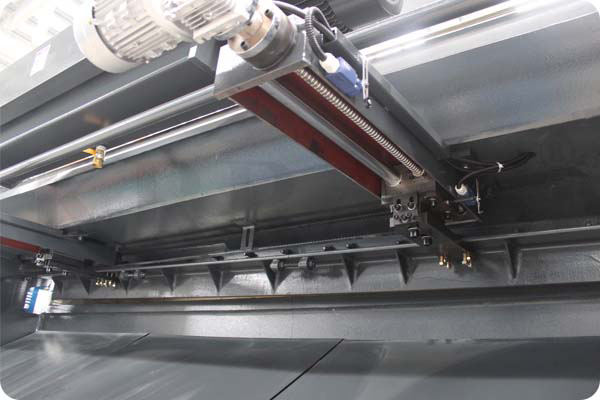

Backgauge use Ball Screw

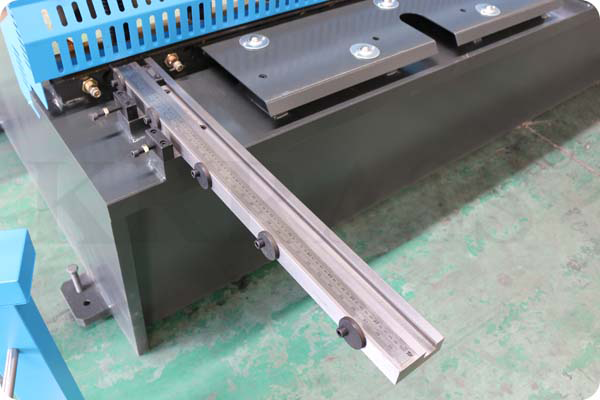

Working Table

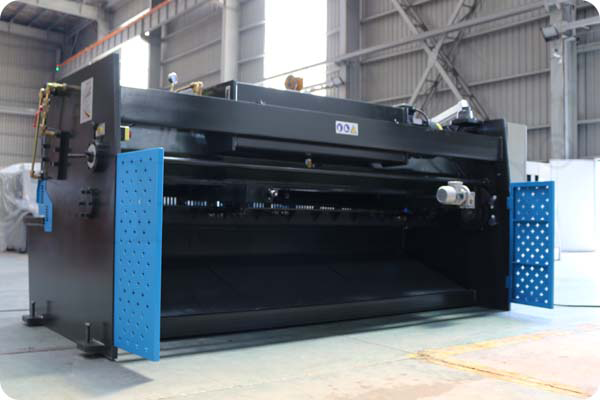

Back safety net

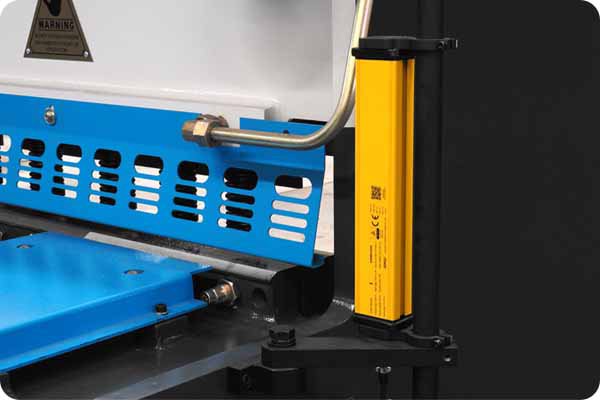

Front Photoelectric Protection

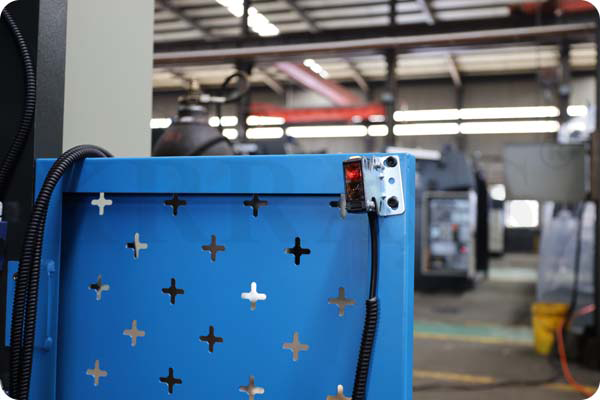

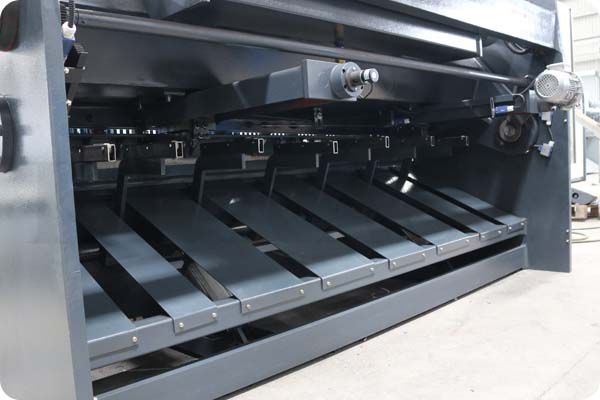

Back Photoelectric Protection

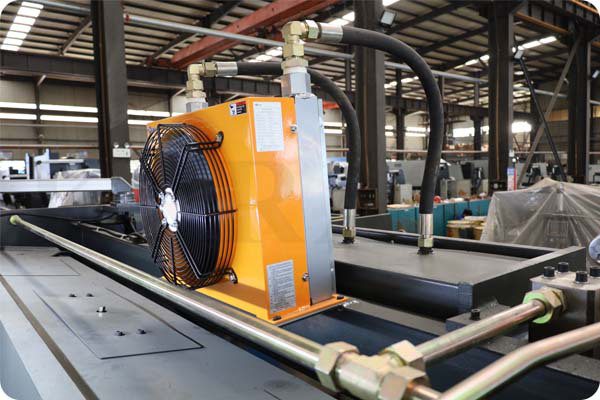

Oil Cooler

Back Photoelectric Protection

Optional Equipment

• Front Photoelectric Protection

• Back Photoelectric Protection

• Oil Cooler

• Back Photoelectric Protection

• Electric gap adjustment
