KRRASS RAS-B Series Flat & Tube Fiber Laser Cutting Machine

Laser Tube Cutting Machine 1500W-20,000W

RAS-B Tube Plate Fiber Laser Cutting Machine is for high-speed, high-quality cutting of various types of sheet metal and cutting of different cross-section metal pipes and profiles specially designed. This series of devices are for small and medium enterprises specially designed. Reliable components from the worlds leading companies, excellent design solutions, and assembly quality make this model a sharp contrast with competitor manufacturers of similar equipment. This model laser cutting machine can be equipped with different power laser sources; the power range is 1500 W to 20 KW.

• High Precision Welding Bed
  Integrated bed with sheet production line, self-sufficiency, shorter delivery, various working size optional
• Auto Oil-filling
  Intelligent system for auto oil filling, oil cut-off avoided
• Cost-Effective
  Low waste of raw materials, low investment with a short payoff period


Introduction to Configuration

The Pipe Clamping Range is Wide

The pipe clamping range of the Laser Tube Cutting Machine is vast, the Round tube is φ10-φ10, and the square tube side length is 10 * 10mm-220mm * 220mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waste pipe, multi-deformed pipe, Etc.

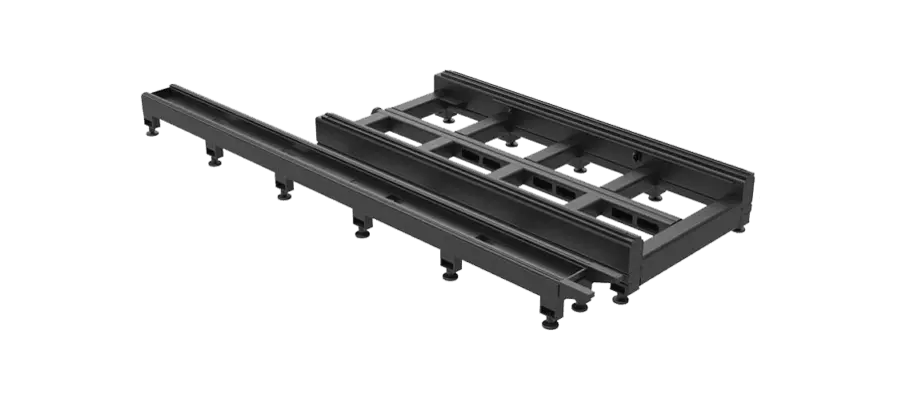

Integrated Machine Bed

The unique industrial structure design gives Laser Tube Cutting Machines maximum stability, higher vibration resistance, and damping quality. The compact spacing of 650mm ensures the agility of the chuck and stability during high-speed driving.

Pneumatic roller support

When the Tube Plate Fiber Laser Cutting Machine works, it can fix the pipe and effectively solves the deformation problem in the cutting operation of the long line.

Tubepro tube cutting and Plate Cutter software

RAS-B Tube Plate Fiber Laser Cutting Machine equipped with FSCUT3000S pipe cutting system, and FSCUT2000 Plate Cutting System, which supports high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped and oval-shaped stretched lines, as well as angle steel and channel steel.

Wide Processing Range, Can Cut a Variety of Tubes

Tube Plate Fiber Laser Cutting Machine can process a wide range of tube sizes: round tube diameter ø15mm-ø220mm, square tube side length 15*15-150*150mm; With a 3D laser cutting head, it can easily cut H steel, I-beam, and angle steel, channel steel, and other profiles, as well as drop-shaped and concave shaped tubes.

Double Pneumatic Chucks, Ultra-short Tailing

The front and rear of Pipe Fiber Laser Cutting Machine chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous. The front chuck is full-stroke, and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.

Automatic Loading Equipment (Optional)

• Tubes are usually loaded to material laying area by transmission mechanism of which limiting device can make tubes in order.
• Tubes are clamped by 6 loading rollers that need no reset in a loading cycle, resulting in less waiting time and high cutting efficiency.

BOCHU Smart Cutting Heads

BOCHU smart cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.

What is this Machine Used for?

The Tube Plate Fiber Laser Cutting Machine can cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, Etc. The device is widely used in metal tube processing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, and decorative advertisements.
