JFY LTP Tube Laser Cutting Machine

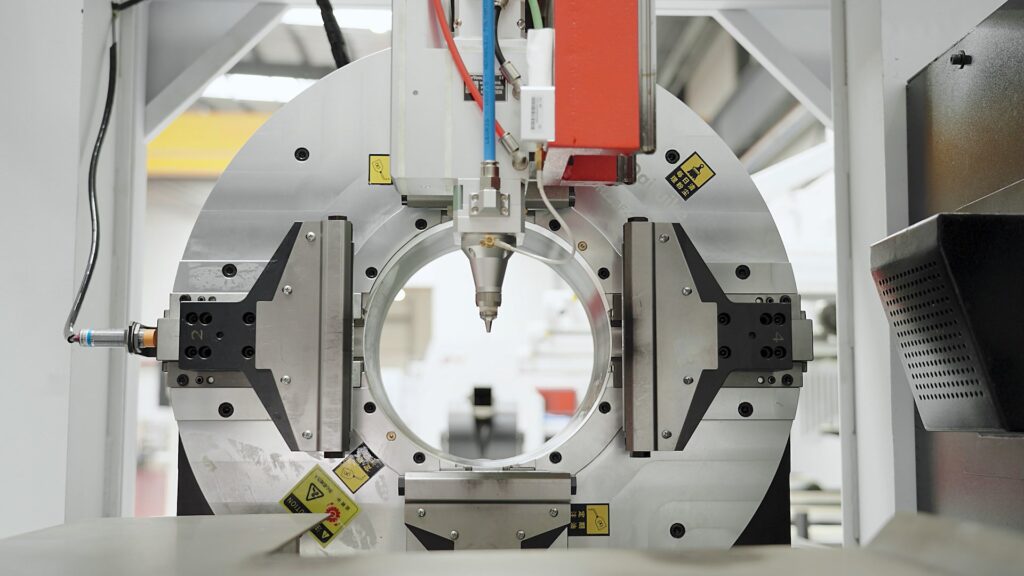

• RayTools auto focus cutting unit with built-in protective glasses for increased durability and cutting precision

• Enhanced dual cooling circuits ensure better cutting stability and performance

• Auto focus function reduces manual intervention, improving power penetration and cutting efficiency

• JFYs new fiber laser generation supports stable, high-frequency cutting with superior seam quality and material surface cleanliness

• High beam quality and power efficiency for optimal cutting performance

• Single module laser design reduces maintenance effort and ensures long-term reliability

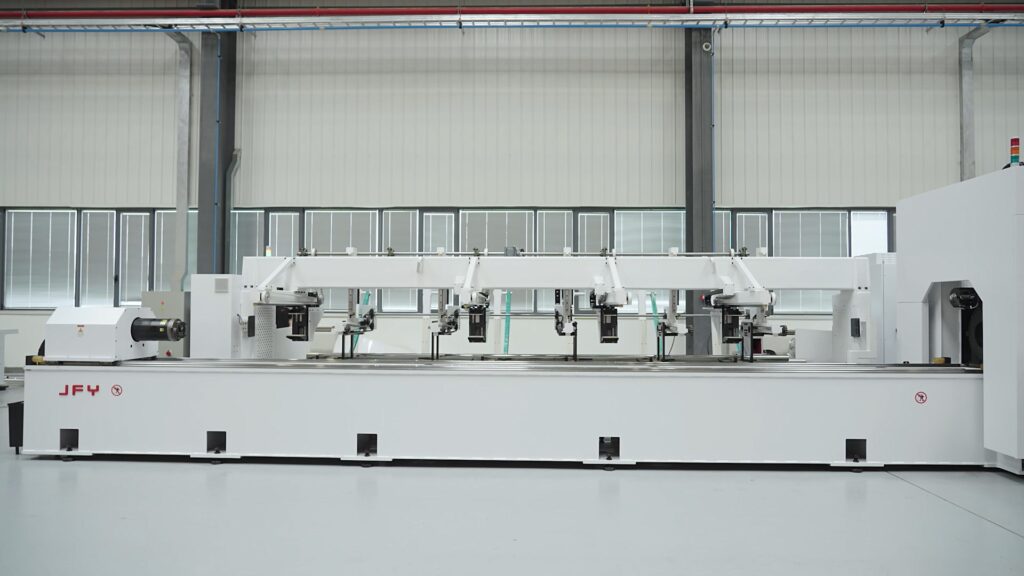

Tube Supporting Unit and Machine frame

• Feeler wheels adjust to the tubes diameter and rotate for proper fit

• Positioning pins are secured for stability

• Tube loading can be manual or semi-automatic

• Feeding chuck moves to the correct position for tube clamping and feeding

• Machine bed welded with optimized interlocking structure for excellent rigidity and stability

• Sectional welding technology ensures long-term deformation-free durability

• Superior anti-vibration capability thanks to optimized machine dynamics

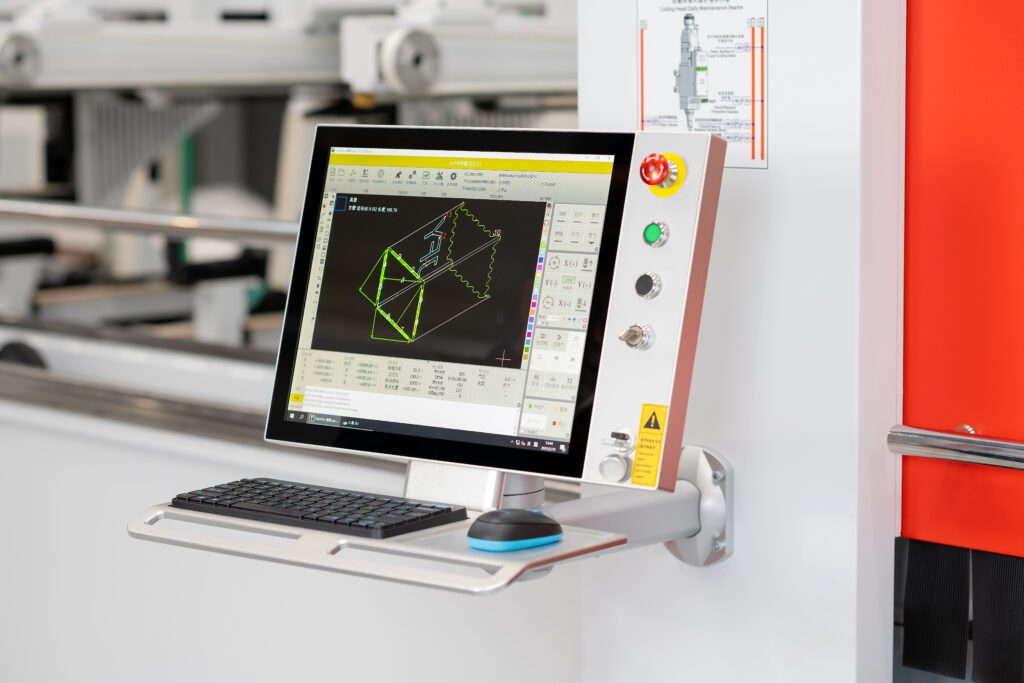

Easy to use CNC Control

• 19 large screen with fast toolbar for easy size and location adjustments

• EtherCAT bus system FRIENDESS FSCUT 5000 designed for fiber laser tube cutting, offering faster and more stable performance

• Supports 3D drawing input (IGS, SAT, JHB) with easy editing for angle iron, channel beam, and H steel

• Real-time compensation for tube center deviation and dynamic simulation for easy program entry

• Cutting unit avoidance and part correction features for enhanced precision
