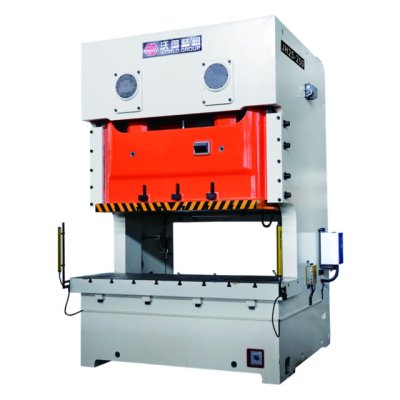

WORLD JH25 Series Open Double Point Press Machine

Product Overview

The typical "three highs" of the double point series
High rigidity, high precision, and high reliability. A professional manufacturer of forging equipment for 60 years and a leader in technological progress. Breaking through the bottleneck of traditional punch processing, both in terms of use and appearance, it gives users a good impression and enhances the added value of customers purchasing products.

Performance characteristics

• Adopting high torque wet friction clutch, stable operation, low noise, long service life, safe and reliable;

• Super large tabletop machine tool, suitable for large-scale sheet metal and automated progressive die production, improving work efficiency;

• High quality steel plate welded body, greatly improving the strength and stiffness of the body;

• Adopting hyperbolic axis reverse transmission improves the machine tool's ability to resist eccentric loads;

• The slider adopts a six sided rectangular guide rail, which has good guidance and high accuracy;

• Electric mold adjustment, accurate reading to 0.1mm;

• Adopting centralized lubrication and equipped with a circulation indicator device;

• Can be equipped with various types of automated peripheral equipment, greatly improving productivity;

• Import electrical components to improve the performance of machine tools.

Configuration Description

Standard configuration:

• Wade high-performance wet clutch

• Hydraulic overload protection device

• Electric grease lubrication device

• Manual thin oil lubrication device

• Slider and upper mold balancing device

• Digital Analog High Display Digitizer

• Misdelivery detection interface

• Touch screen

• Crankshaft angle indicator

• Cam controller

• Rotary encoder

• Mobile operating platform

• Electric slider adjustment device

• Programmable controller

• Air source quick connector

• Shock absorber pad

• Air blowing device

Optional configuration:

• Photoelectric protection device

• Foot switch

• Air cushion device

• Quick mold changing device

• Automatic feeding output shaft

• Frequency converter

• Foundation screw

• Upper stripping device of slider (including mold handle hole)
