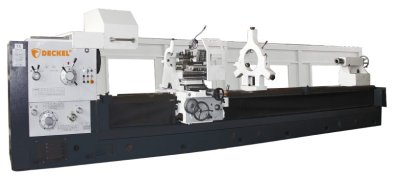

DECKEL TURNER 800HD/1000HD/1200HD

SKU : 10203800

Specification

Accessories

Model	Turner 800HD	Turner 1000HD	Turner 1200HD
Item No.	4813001	4813000	4803000
Electrical data
Motor power	11 KW	11 KW	11 KW
Rapid feed motor	1.1 KW	1.1 KW	1.1 KW
Capacity
Max.swing over bed	ø800 mm	ø1000 mm	ø1200 mm
Max.swing over gap	ø1000 mm	ø1200 mm	ø1400 mm
Max.swing over cross slide	ø480 mm	ø680 mm	ø680 mm
Center distance	1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m	1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m	1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m
Width of bed	600 mm	600 mm	600 mm
Spindle
Spindle hole	ø105 mm ø130 mm optional	ø105 mm ø130 mm optional	ø105 mm ø130 mm optional
Spindle taper	1:20	1:20	1:20
Spindle speeds	5.5-730 rpm	5.5-730 rpm	5.5-730 rpm
Feeds and threads
Metric threads mm	1-240 mm (52)	1-240 mm (52)	1-240 mm (52)
Inch threads	TPI 1-14 (26)TPI	TPI 1-14 (26)TPI	TPI 1-14 (26)TPI
Rapid feed:long/cross	4000 mm/min,2000 mm/min	4000 mm/min,2000 mm/min	4000 mm/min,2000 mm/min
Slide
Tool section	32×32 mm	32×32 mm	32×32 mm
Cross slide travel	520 mm	520 mm	520 mm
Top slide travel	200 mm	200 mm	200 mm
Tailstock
Sleeve diameter	ø120 mm	ø120 mm	ø120 mm
Sleeve taper	MT6	MT6	MT6
Sleeve travel	240 mm	240 mm	240 mm
