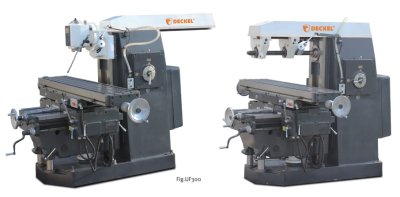

DECKEL UF 300

SKU : 10201800

Universal Milling Machine

Specification

Model	UF 300
Code No.	2230000
Voltage	400 V/50 HZ/3 PH
Main motor power	11 KW
Feed motor speed	3 KW
Spindle hole taper	ISO 50 7:24
Arbor diameter	24 mm
Diameter of spindle hole	Ø 69.95 mm
Face to workstations from the spindle	30-480 mm
Min. distance from spindle center to table	30 mm
Worktable area	425x2000 mm
T-slot size/spacing/count	18 mm/100 mm/3
Table Load-bearing	800 Kg
Trip of worktable longitudinal(manual/automatic) mm	1200/1180
Trip of worktable transverse(manual/automatic)	410/400 mm
Trip of worktable movements(manual/automatic)	460/450 mm
Max. rotary angle of table	±45°
Feed scope workstations longitudinal	10-1250 mm/min,15 step
Feed scope workstations transverse	10-1250 mm/min,15 step
Feed scope workstations movements	2.5-315 mm/min,15 step
Rapid feed ranges	X:3200 mm/min Y/Z:800/3200 mm/min
Distance from spindle center to arm	212 mm
Distance between table center to vertical guide way	450 mm
Spindle speed range	18-1400 rpm,20 step
Overall size	2614x2497x2043 mm
Size of machine	2700x2500x2200 mm
Net weight/ Gross weight	5200 kg/5850 kg
