TEKMA TLR-4 4-Axis CNC Router Machine

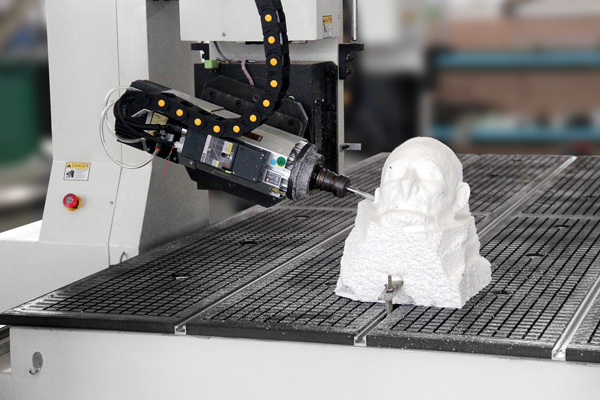

Upper / left / right side of the material can be processed
continuous linkage.It's a necessary machine for mold processing industry.

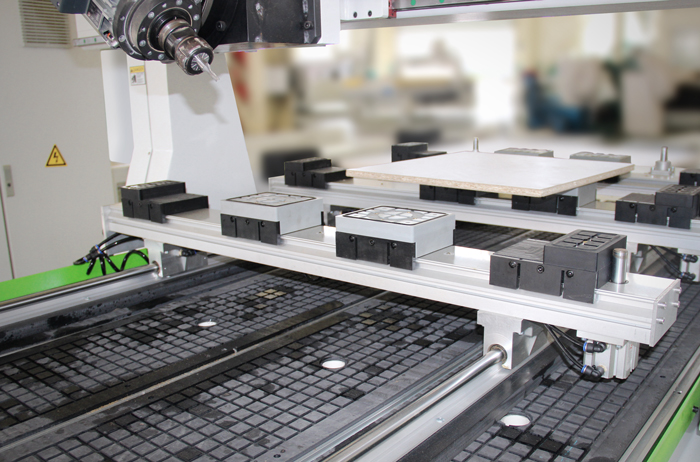

Using German  Schmalz adsorption block, it is more convenient to process the left and right sides of the material. And it can finish the carving and cutting of plane materials efficiently

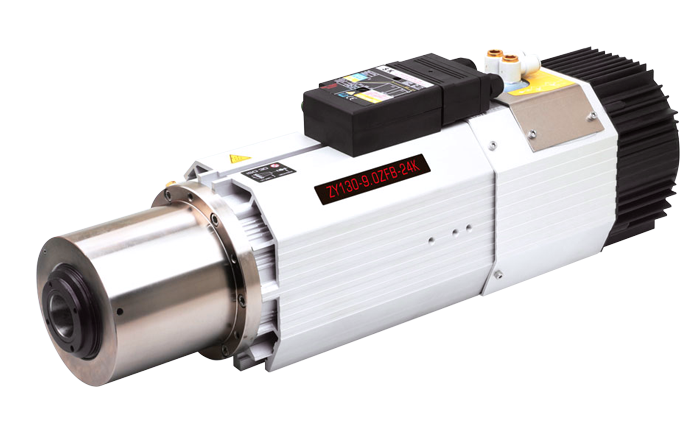

wood/MDF/metal/PVC/plastic all common materials can be cut and engraved. 7.5KW/9KW/12KW are available.International standard ISO and F63 also no problem.





Leadshine stepper / Yaskawa/Delta / Panasonic / Fuji
According to machining accuracy requirements multiple brands available





vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.





Automatic tool calibration pad is designed for easy and accurate recording of tool length off-sets





LNC control system based on computer operation mode more intuitive and simple. Manual Pulse Generator (MPG)
The MPG allows the operator to move around the machine, making for easy setup
