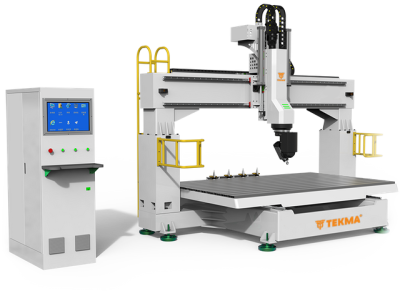

TEKMA TLR-5 5-Axis CNC Router Machine



X,Y,Z,B,C 5 axis linkage, truly realize three-dimensional machining. Maximum angle attainable ±320° .It is suitable for metal, wood, foam，plastic and other materials processing, widely used in  mold industry.

Extreme machining stiffness thanks to the tilting B axis that generates minimum torque on the rotating axes

Maximum coverage of the machining areas

Wide rotation of axis C ± 320° (opt: continuous rotation)  All the spindle from Italy HSD or HITECO





5 axis control system with RTCP(Real-Time Tool Center Point Rotatio) function. It greatly improves the machining accuracy and reduces the design difficulty.

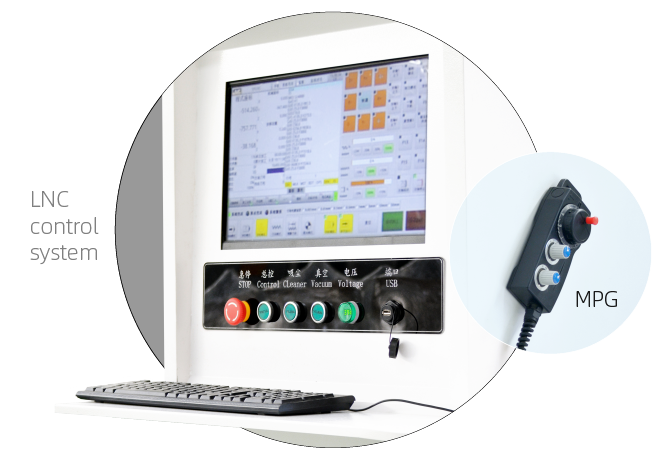

MPG is standard configuration

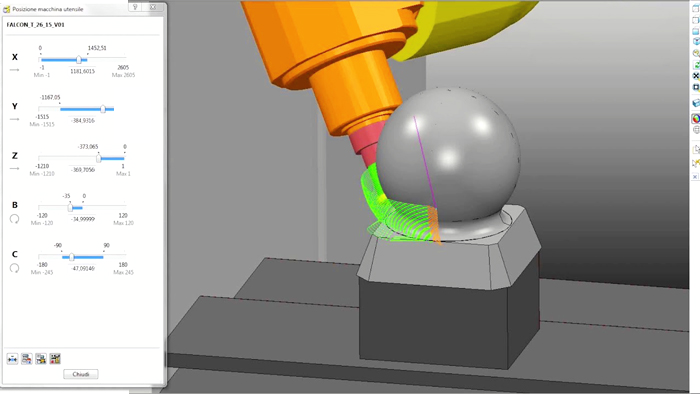

SolidWorks / UG / AlphaCAM all can be used as the design software for this machine.Choose one you are familiar with





YASKAWA/Fuji/DELTA/Leadshine servo motor multi options. Ensure high precision and stable operation of the machine





HIWIN/THK/YYC rail and rack are available. Precision helical gear racks on the
X and Y axes. which ensure a high working speed.The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.





Automatic tool calibration pad is designed for easily and accurately recording of tool length

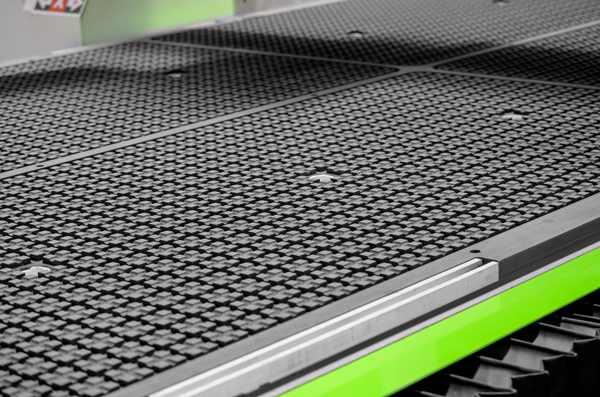

vacuum plenum table surface which is very easy for fixing the materials on the table;Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.
