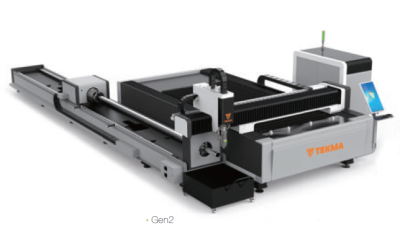

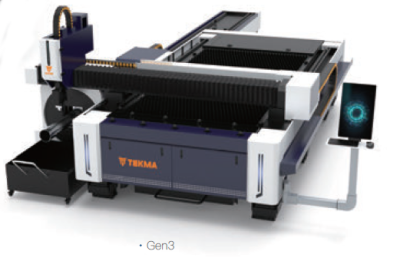

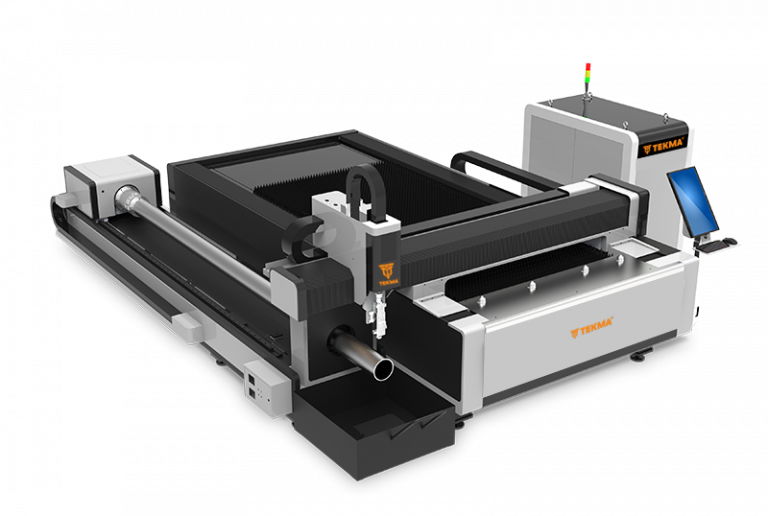

TEKMA TLF-ST Sheet and Tube Laser Cutting Machine

series can be used to process plane materials and various pipes. It has multiple uses, greatly saving the floor space and improving the processing efficiency.



The front and rear are equipped with fully automatic electric and pneumatic chuck, which can clamp automatically and determine the pipe center automatically. the diagonal adjustable range is 20-200mm.

Automatic support bracket

Support different types of pipes intelligently,The problem of long pipe deformation is solved







Flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using.

Lifetime service

It ensures the accuracy of the machine working for a long time, and it will not deform during its lifetime use.

Higher precision

A solid bed has high stability .It is unmatched by other materials and structures. The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years. The rough, fine and super-fine of the imported gantry machining center guarantee the machining accuracy requirements of the machine body.

Cast Aluminum Beam

Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions. Precision is maintained






Multiple protection

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.

Various brands of laser head are available

We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX all of our long-term partners.

High-precision

The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.



Wireless Handheld Control

Magnetic design can be adsorbed on the machine bed at any time, available at all times.
It allows you to operate the machine at close range and control the machine at different angles.
