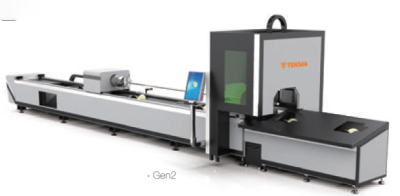

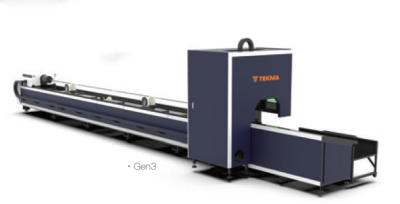

TEKMA TLF-T Standard Fiber Laser Tube Cutting Machine

With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.

Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter sections cutting accuracy within 0.15mm.

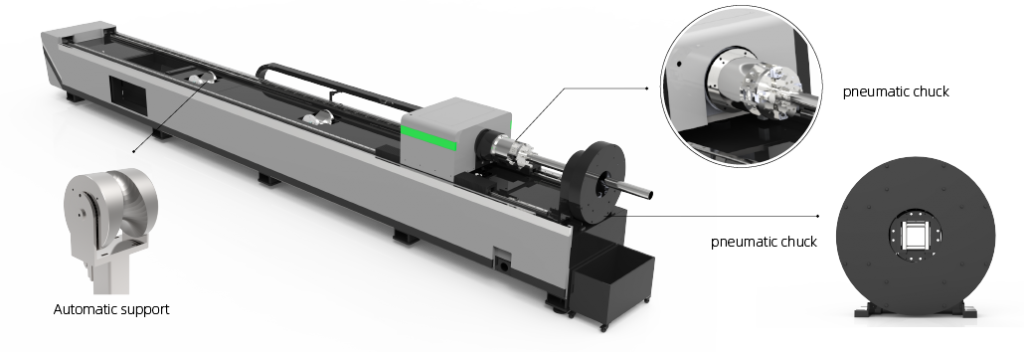

The front and rear are equipped with fully automatic electric and pneumatic chuck, which can clamp automatically and determine the pipe center automatically. the diagonal adjustable range is 20-200mm.

Automatic support bracket

Support different types of pipes intelligently,The problem of long pipe deformation is solved




Adopts national standard square tube, 600 high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.





Multiple protection

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.



We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX all of our long-term partners.

High-precision

The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.
