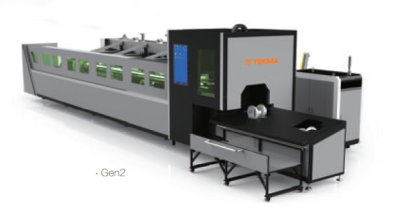

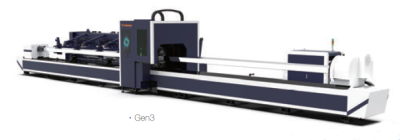

TEKMA TLF-AT Tube Auto Loading Fiber Laser Cutting Machine
SKU : 10101000
Automatic loading system
Description
Specification
Product Description
Automatic material loading and unloading device is controlled using a numerical control system to feeding the pipes these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time. This decreases the cost of manually delivery materials
With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter sections cutting accuracy within 0.15mm.
The front and rear are equipped with fully automatic electric and pneumatic chuck, which can clamp automatically and determine the pipe center automatically. the diagonal adjustable range is 20-200mm.
Automatic support bracket
Support different types of pipes intelligently,The problem of long pipe deformation is solved
Adopts national standard square tube, 600 high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.
We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX all of our long-term partners.
High-precision
The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.
- Features a fully automated feeding system, eliminating manual maintenance and enabling one-person control of the machine
- Utilizes bus signal transmission for faster response, higher precision, and increased operation sensitivity. Includes a follow-up support system to protect the pipe from damage
- Provides a professional pipe typesetting system that intelligently identifies workpieces, optimizes cutting with shared edges, reduces material waste, and improves cutting speed and efficiency
Technical Parameters ddeded

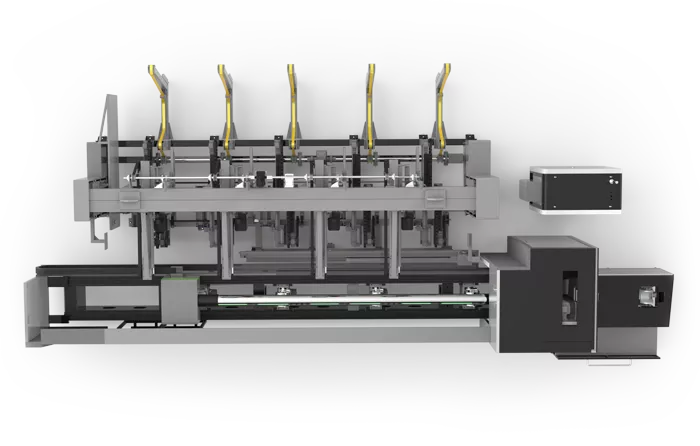

Automatic loading system
Automatic material loading and unloading device is controlled using a numerical control system to feeding the pipes these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time. This decreases the cost of manually delivery materials
Intelligent recognition
With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter sections cutting accuracy within 0.15mm.
Automatic clamping
The front and rear are equipped with fully automatic electric and pneumatic chuck, which can clamp automatically and determine the pipe center automatically. the diagonal adjustable range is 20-200mm.
Automatic support bracket
Support different types of pipes intelligently,The problem of long pipe deformation is solved

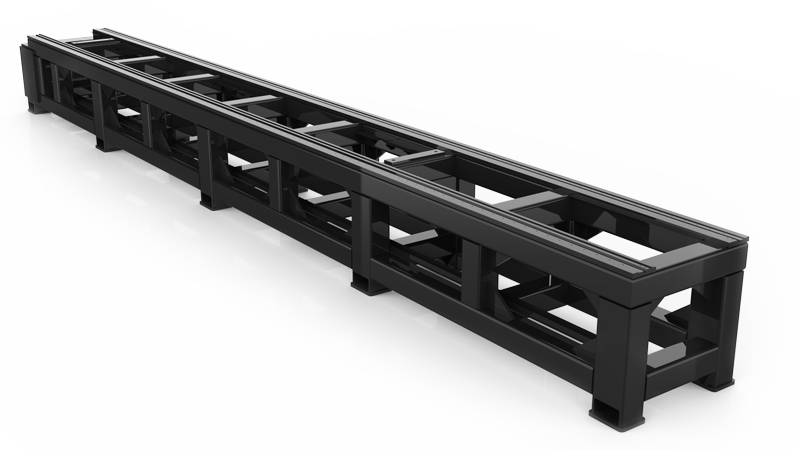

Machine Body
Adopts national standard square tube, 600 high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.
Laser Cutting head RAYTOOLS / WSX
Multiple protection
3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.
3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time.
Various brands of laser head are available
We can provide all high quality laser heads in.it has been tested by us for a long time. Empower/WSX all of our long-term partners.
High-precision
The closed-loop stepping motor is adopted to effectively avoid step loss. The focusing speed is 100 m m / s and the repetition accuracy is 1 μ M. IP65 class dust-proof, patent protection mirror cover plate, dust-proof without dead angle.
What materials can be processed ?
Stainless Steel
Alumunium
Carbon Steel
Stainless Steel
