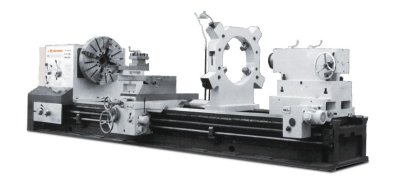

DECKEL TURNER 1280HH/1280HH/1680HH/1980HH/2080HH

SKU : 10204000

Categories : Machine Tools Machinery , Lathe Machine

Specification

Accessories

Model	Turner 1280HH	Turner 1480HH	Turner 1680HH	Turner 1980HH	Turner 2080HH
Item No.	4604200	4606200	4608200	4609200	4615200
Electrical data
Main drive motor	30 KW	30 KW	30 KW	30 KW	30 KW
Coolant pump motor	0.15 KW	0.15 KW	0.15 KW	0.15 KW	0.15 KW
Rapid feed motor	1.5 KW	1.5 KW	1.5 KW	1.5 KW	1.5 KW
Tailstock motor	1.5 KW	1.5 KW	1.5 KW	1.5 KW	1.5 KW
Capacity
Max workpiece weight	10 T	10 T	10 T	10 T	10 T
Max swing over bed	ø1280 mm	ø1480 mm	ø1680 mm	ø1980 mm	ø2080 mm
Max swing over cross slide	ø840 mm	ø1040 mm	ø1240 mm	ø1500 mm	ø1600 mm
Center distance	2m 3m 4m 5m 6m 8m 10m 12m	2m 3m 4m 5m 6m 8m 10m 12m	2m 3m 4m 5m 6m 8m 10m 12m	2m 3m 4m 5m 6m 8m 10m 12m	2m 3m 4m 5m 6m 8m 10m 12m
Max swing over gap	ø1580 mm	ø1780 mm	ø1980 mm	ø2280 mm	ø2380 mm
Valid length of gap	600 mm	600 mm	600 mm	600 mm	600 mm
Bed width	1100 mm	1100 mm	1100 mm	1100 mm	1100 mm
Spindle
Spindle bore	ø130 mm	ø130 mm	ø130 mm	ø130 mm	ø130 mm
Spindle taper	140#	140#	140#	140#	140#
Spindle speeds	3-315 rpm或2-200 rpm或2-250 rpm	3-315 rpm或2-200 rpm或2-250 rpm	3-315 rpm或2-200 rpm或2-250 rpm	3-315 rpm或2-200 rpm或2-250 rpm	3-315 rpm或2-200 rpm或2-250 rpm
Feeds
Rapid feed:long/cross	3400 mm/min,1700 mm/min	3400 mm/min,1700 mm/min	3400 mm/min,1700 mm/min	3400 mm/min,1700 mm/min	3400 mm/min,1700 mm/min
Tool-post
Distance between Center&Tool	48 mm	48 mm	48 mm	48 mm	48 mm
Tool section	45×45 mm	45×45 mm	45×45 mm	45×45 mm	45×45 mm
Slide
Cross slide travel	860 mm	860 mm	860 mm	860 mm	860 mm
Top slide travel	280 mm	280 mm	280 mm	280 mm	280 mm
Tailstock
Sleeve diameter	ø260 mm	ø260 mm	ø260 mm	ø260 mm	ø260 mm
Sleeve taper	80#	80#	80#	80#	80#
Sleeve travel	300 mm	300 mm	300 mm	300 mm	300 mm

DECKEL TURNER 1280HH/1280HH/1680HH/1980HH/2080HH
