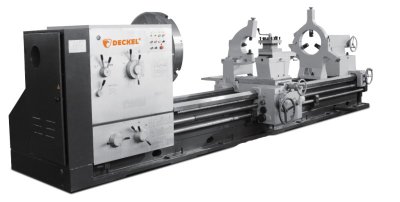

DECKEL TURNER 1400HM/1600HM

SKU : 10203900

Specification

Accessories

Model	Turner 1400HM	Turner 1600HM
Item No.	4705100	4707100
Electrical data
Motor power	22 KW	22 KW
Coolant motor	0.15 KW	0.15 KW
Rapid feed motor	1.5 KW	1.5 KW
Capacity
Max.weight of workpiece	8 T	8 T
Max.swing over bed	ø1400 mm	ø1600 mm
Max.swing over cross slide	ø1000 mm	ø1200 mm
Center distance	1.5m 2m 3m 4m 5m 6m 8m 10m 12m	1.5m 2m 3m 4m 5m 6m 8m 10m 12m
Width of bed	780 mm	780 mm
Spindle
Spindle hole	ø130 mm	ø130 mm/ ø145 mm
Spindle taper	140#(A15)	140#(A15)
Spindle speeds	3.15-315r/min 或 2.5-250r/min	3.15-315r/min 或 2.5-250r/min
Feeds
Rapid feed:Long/Cross	3400 mm/min,1700 mm/min	3400 mm/min,1700 mm/min
Tool-post
Distance between Center & Tool	48 mm	48 mm
Tool section	45×45 mm	45×45 mm
Slide
Cross slide travel	650 mm	650 mm
Top slide travel	280 mm	280 mm
Tailstock
Sleeve diameter	ø160 mm	ø160 mm
Sleeve taper	80# or MT6	80# or MT6
Sleeve travel	300 mm	300 mm
